A simple java application ... applet ... this project has the aim to capture WEB CAM snaps, and GPS position of a mobile site ... that is to (a) 'monitor' a USB connected Web CAM ... take 'snaps' at pre-determined intervals ... write the 'snap' to a JPEG image ... transfer the JPEG file up to the site server ... (b) this is to be extended to 'monitor' a COM port, redirection of a USB connected GPS receiver, or a Bluetooth GPS connection ... sift through the $GPRMC/$GPGSV/$GPGSA/$GPGGA/$GPVTG/... NMEA sentences ... prepare an XML position file to upload to the server site ...

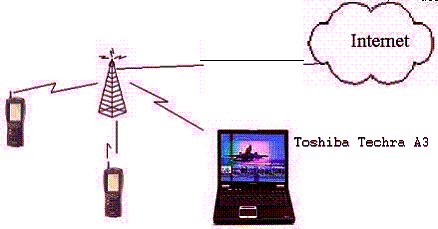

The mobile unit consists of a Toshiba Techra A3 laptop ... it connects to Internet via an iBurst, or Unwired account, like other PDA's ... and cell phone networks ...

Running in the mobile, web-connected, unit is a Web CAM viewer, based on some public code, posted on a board ... a few years ago ... the 'reason' for the posting is 'interesting' ;=)) see WebCam01.java below ...

/* =============================================== No Question, just example web cam capture code Author: omcgovern Oct 9, 2003 2:21 AM Hi, Since loads of people ask for an example of capturing pics from a web cam, here's one that captures pics, lets you take snapshots, which it displays in another frame. When you shut down the frame it asks if you want to save it to a JPEG. I'm mainly posting this to spite Eka_Kupkova, who only visits this forum to shamelessly advertise a commercial Twain based package in every single posting on this forum which mentions web cams. Notes : ( Could be more, read the install docs for JMF ) 1. you must download the "performance" version of jmf to capture video. 2. I "think" you need to setup the JMF_HOME environment variable 3. Run the jmfinit program to detect your camera and register it. I had to run it a couple of times before it worked. 4. I had 2 icons for my toolbar, BtnFormat.jpg and BtnCapture.jpg. They were just 16 x 16 pixel bitmaps, you can make them up yourself. 5. I assume you've got the webcam working and the driver installed already. Ps. if you find this useful, then reply back with where you are in the world. I'm in Dublin, Ireland. =============================================== */ // Re: No Question, just example web cam capture code // Author: omcgovern Oct 10, 2003 1:20 AM (reply 1 of 23) // Doohhh... I posted an old version which didn't work. // I tried and tested this last night, and it runs grand using Ver 2.1.1e. // Tested under Windows 98, using an old Creative GO Camera. // Haven't tried it under Linux, but suspect you'd have to at least change an references to "vfw" to "v4l". // // You'll need jmf.jar in your classpath to run it too. // cheers, // Owen import javax.swing.*; import javax.swing.border.*; import java.io.*; import javax.media.*; import javax.media.datasink.*; import javax.media.format.*; import javax.media.protocol.*; import javax.media.util.*; import javax.media.control.*; import java.util.*; import java.awt.*; import java.awt.image.*; import java.awt.event.*; import com.sun.image.codec.jpeg.*; // import com.sun.media.vfw.VFWCapture; // JMF 2.1.1c version import com.sun.media.protocol.vfw.VFWCapture; // JMF 2.1.1e version public class JWebCam extends JFrame implements WindowListener, ComponentListener { protected final static int MIN_WIDTH = 320; protected final static int MIN_HEIGHT = 240; protected static int shotCounter = 1; protected JLabel statusBar = null; protected JPanel visualContainer = null; protected Component visualComponent = null; protected JToolBar toolbar = null; protected MyToolBarAction formatButton = null; protected MyToolBarAction captureButton = null; protected Player player = null; protected CaptureDeviceInfo webCamDeviceInfo = null; protected MediaLocator ml = null; protected Dimension imageSize = null; protected FormatControl formatControl = null; protected VideoFormat currentFormat = null; protected Format[] videoFormats = null; protected MyVideoFormat[] myFormatList = null; protected boolean initialised = false; /* -------------------------------------------------------------- * Constructor * -------------------------------------------------------------- */ public JWebCam ( String frameTitle ) { super ( frameTitle ); try { UIManager.setLookAndFeel("javax.swing.plaf.metal.MetalLookAndFeel"); } catch ( Exception cnfe ) { System.out.println ("Note : Cannot load look and feel settings"); } setSize ( 320, 260 ); // default size... addWindowListener ( this ); addComponentListener ( this ); getContentPane().setLayout ( new BorderLayout() ); visualContainer = new JPanel(); visualContainer.setLayout ( new BorderLayout() ); getContentPane().add ( visualContainer, BorderLayout.CENTER ); statusBar = new JLabel (""); statusBar.setBorder ( new EtchedBorder() ); getContentPane().add ( statusBar, BorderLayout.SOUTH ); } /* -------------------------------------------------------------- * Initialise * * @returns true if web cam is detected * -------------------------------------------------------------- */ public boolean initialise ( ) throws Exception { return ( initialise ( autoDetect() ) ); } /* ------------------------------------------------------------------- * Initialise * * @params _deviceInfo, specific web cam device if not autodetected * @returns true if web cam is detected * ------------------------------------------------------------------- */ public boolean initialise ( CaptureDeviceInfo _deviceInfo ) throws Exception { statusBar.setText ( "Initialising..."); webCamDeviceInfo = _deviceInfo; if ( webCamDeviceInfo != null ) { statusBar.setText ( "Connecting to : " + webCamDeviceInfo.getName() ); try { setUpToolBar(); getContentPane().add ( toolbar, BorderLayout.NORTH ); ml = webCamDeviceInfo.getLocator(); if ( ml != null ) { player = Manager.createRealizedPlayer ( ml ); if ( player != null ) { player.start(); formatControl = (FormatControl)player.getControl ( "javax.media.control.FormatControl" ); videoFormats = webCamDeviceInfo.getFormats(); visualComponent = player.getVisualComponent(); if ( visualComponent != null ) { visualContainer.add ( visualComponent, BorderLayout.CENTER ); myFormatList = new MyVideoFormat[videoFormats.length]; for ( int i=0; i < videoFormats.length; i++ ) { myFormatList[i] = new MyVideoFormat ( (VideoFormat)videoFormats[i] ); } Format currFormat = formatControl.getFormat(); if ( currFormat instanceof VideoFormat ) { currentFormat = (VideoFormat)currFormat; imageSize = currentFormat.getSize(); visualContainer.setPreferredSize ( imageSize ); setSize ( imageSize.width, imageSize.height + statusBar.getHeight() + toolbar.getHeight() ); } else { System.err.println ("Error : Cannot get current video format"); } invalidate(); pack(); return ( true ); } else { System.err.println ("Error : Could not get visual component"); return ( false ); } } else { System.err.println ("Error : Cannot create player"); statusBar.setText ( "Cannot create player" ); return ( false ); } } else { System.err.println ("Error : No MediaLocator for " + webCamDeviceInfo.getName() ); statusBar.setText ( "No Media Locator for : " + webCamDeviceInfo.getName() ); return ( false ); } } catch ( IOException ioEx ) { statusBar.setText ( "Connecting to : " + webCamDeviceInfo.getName() ); return ( false ); } catch ( NoPlayerException npex ) { statusBar.setText ("Cannot create player"); return ( false ); } catch ( CannotRealizeException nre ) { statusBar.setText ( "Cannot realize player"); return ( false ); } } else { return ( false ); } } /* ------------------------------------------------------------------- * Dynamically create menu items * * @returns the device info object if found, null otherwise * ------------------------------------------------------------------- */ public void setFormat ( VideoFormat selectedFormat ) { if ( formatControl != null ) { player.stop(); imageSize = selectedFormat.getSize(); formatControl.setFormat ( selectedFormat ); player.start(); statusBar.setText ( "Format : " + selectedFormat ); currentFormat = selectedFormat; visualContainer.setPreferredSize ( currentFormat.getSize() ); setSize ( imageSize.width, imageSize.height + statusBar.getHeight() + toolbar.getHeight() ); } else { System.out.println ("Visual component not an instance of FormatControl"); statusBar.setText ( "Visual component cannot change format" ); } } public VideoFormat getFormat ( ) { return ( currentFormat ); } protected void setUpToolBar ( ) { toolbar = new JToolBar(); // Note : If you supply the 16 x 16 bitmaps then you can replace // the commented line in the MyToolBarAction constructor formatButton = new MyToolBarAction ( "Resolution", "BtnFormat.jpg" ); captureButton = new MyToolBarAction ( "Capture", "BtnCapture.jpg" ); toolbar.add ( formatButton ); toolbar.add ( captureButton ); getContentPane().add ( toolbar, BorderLayout.NORTH ); } protected void toolbarHandler ( MyToolBarAction actionBtn ) { if ( actionBtn == formatButton ) { Object selected = JOptionPane.showInputDialog (this, "Select Video format", "Capture format selection", JOptionPane.INFORMATION_MESSAGE, null, // Icon icon, myFormatList, // videoFormats, currentFormat ); if ( selected != null ) { setFormat ( ((MyVideoFormat)selected).format ); } } else if ( actionBtn == captureButton ) { Image photo = grabFrameImage ( ); if ( photo != null ) { MySnapshot snapshot = new MySnapshot ( photo, new Dimension ( imageSize ) ); } else { System.err.println ("Error : Could not grab frame"); } } } /* ------------------------------------------------------------------- * autoDetects the first web camera in the system * searches for video for windows ( vfw ) capture devices * * @returns the device info object if found, null otherwise * ------------------------------------------------------------------- */ public CaptureDeviceInfo autoDetect ( ) { Vector list = CaptureDeviceManager.getDeviceList ( null ); CaptureDeviceInfo devInfo = null; if ( list != null ) { String name; for ( int i=0; i < list.size(); i++ ) { devInfo = (CaptureDeviceInfo)list.elementAt ( i ); name = devInfo.getName(); if ( name.startsWith ("vfw:") ) { break; } } if ( devInfo != null && devInfo.getName().startsWith("vfw:") ) { return ( devInfo ); } else { for ( int i = 0; i < 10; i++ ) { try { name = VFWCapture.capGetDriverDescriptionName ( i ); if (name != null && name.length() > 1) { devInfo = com.sun.media.protocol.vfw.VFWSourceStream.autoDetect ( i ); if ( devInfo != null ) { return ( devInfo ); } } } catch ( Exception ioEx ) { // ignore errors detecting device statusBar.setText ( "AutoDetect failed : " + ioEx.getMessage() ); } } return ( null ); } } else { return ( null ); } } /* ------------------------------------------------------------------- * deviceInfo * * @note outputs text information * ------------------------------------------------------------------- */ public void deviceInfo ( ) { if ( webCamDeviceInfo != null ) { Format[] formats = webCamDeviceInfo.getFormats(); if ( ( formats != null ) && ( formats.length > 0 ) ) { } for ( int i=0; i < formats.length; i++ ) { Format aFormat = formats[i]; if ( aFormat instanceof VideoFormat ) { Dimension dim = ((VideoFormat)aFormat).getSize(); // System.out.println ("Video Format " + i + " : " + formats[i].getEncoding() + ", " + dim.width + " x " + dim.height ); } } } else { System.out.println ("Error : No web cam detected"); } } /* ------------------------------------------------------------------- * grabs a frame's buffer from the web cam / device * * @returns A frames buffer * ------------------------------------------------------------------- */ public Buffer grabFrameBuffer ( ) { if ( player != null ) { FrameGrabbingControl fgc = (FrameGrabbingControl)player.getControl ( "javax.media.control.FrameGrabbingControl" ); if ( fgc != null ) { return ( fgc.grabFrame(); ); } else { System.err.println ("Error : FrameGrabbingControl is null"); return ( null ); } } else { System.err.println ("Error : Player is null"); return ( null ); } } /* ------------------------------------------------------------------- * grabs a frame's buffer, as an image, from the web cam / device * * @returns A frames buffer as an image * ------------------------------------------------------------------- */ public Image grabFrameImage ( ) { Buffer buffer = grabFrameBuffer(); if ( buffer != null ) { // Convert it to an image BufferToImage btoi = new BufferToImage ( (VideoFormat)buffer.getFormat() ); if ( btoi != null ) { Image image = btoi.createImage ( buffer ); if ( image != null ) { return ( image ); } else { System.err.println ("Error : BufferToImage cannot convert buffer"); return ( null ); } } else { System.err.println ("Error : cannot create BufferToImage instance"); return ( null ); } } else { System.out.println ("Error : Buffer grabbed is null"); return ( null ); } } /* ------------------------------------------------------------------- * Closes and cleans up the player * * ------------------------------------------------------------------- */ public void playerClose ( ) { if ( player != null ) { player.close(); player.deallocate(); player = null; } } public void windowClosing ( WindowEvent e ) { playerClose(); System.exit ( 1 ); } public void componentResized ( ComponentEvent e ) { Dimension dim = getSize(); boolean mustResize = false; if ( dim.width < MIN_WIDTH ) { dim.width = MIN_WIDTH; mustResize = true; } if ( dim.height < MIN_HEIGHT ) { dim.height = MIN_HEIGHT; mustResize = true; } if ( mustResize ) setSize ( dim ); } public void windowActivated ( WindowEvent e ) { } public void windowClosed ( WindowEvent e ) { } public void windowDeactivated ( WindowEvent e ) { } public void windowDeiconified ( WindowEvent e ) { } public void windowIconified ( WindowEvent e ) { } public void windowOpened ( WindowEvent e ) { } public void componentHidden(ComponentEvent e) { } public void componentMoved(ComponentEvent e) { } public void componentShown(ComponentEvent e) { } protected void finalize ( ) throws Throwable { playerClose(); super.finalize(); } class MyToolBarAction extends AbstractAction { public MyToolBarAction ( String name, String imagefile ) { // Note : Use version this if you supply your own toolbar icons // super ( name, new ImageIcon ( imagefile ) ); super ( name ); } public void actionPerformed ( ActionEvent event ) { toolbarHandler ( this ); } }; class MyVideoFormat { public VideoFormat format; public MyVideoFormat ( VideoFormat _format ) { format = _format; } public String toString ( ) { Dimension dim = format.getSize(); return ( format.getEncoding() + " [ " + dim.width + " x " + dim.height + " ]" ); } }; class MySnapshot extends JFrame { protected Image photo = null; protected int shotNumber; public MySnapshot ( Image grabbedFrame, Dimension imageSize ) { super ( ); shotNumber = shotCounter++; setTitle ( "Photo" + shotNumber ); photo = grabbedFrame; setDefaultCloseOperation ( WindowConstants.DISPOSE_ON_CLOSE ); int imageHeight = photo.getWidth ( this ); int imageWidth = photo.getHeight ( this ); setSize ( imageSize.width, imageSize.height ); final FileDialog saveDialog = new FileDialog ( this, "Save JPEG", FileDialog.SAVE ); final JFrame thisCopy = this; saveDialog.setFile ( "Photo" + shotNumber ); addWindowListener ( new WindowAdapter() { public void windowClosing ( WindowEvent e ) { saveDialog.show(); String filename = saveDialog.getFile(); if ( filename != null ) { if ( saveJPEG ( filename ) ) { JOptionPane.showMessageDialog ( thisCopy, "Saved " + filename ); setVisible ( false ); dispose(); } else { JOptionPane.showMessageDialog ( thisCopy, "Error saving " + filename ); } } else { setVisible ( false ); dispose(); } } } ); setVisible ( true ); } public void paint ( Graphics g ) { g.drawImage ( photo, 0, 0, getWidth(), getHeight(), this ); } /* ------------------------------------------------------------------- * Saves an image as a JPEG * * @params the image to save * @params the filename to save the image as * ------------------------------------------------------------------- */ public boolean saveJPEG ( String filename ) { boolean saved = false; BufferedImage bi = new BufferedImage ( photo.getWidth(null), photo.getHeight(null), BufferedImage.TYPE_INT_RGB ); Graphics2D g2 = bi.createGraphics(); g2.drawImage ( photo, null, null ); FileOutputStream out = null; try { out = new FileOutputStream ( filename ); JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder ( out ); JPEGEncodeParam param = encoder.getDefaultJPEGEncodeParam ( bi ); param.setQuality ( 1.0f, false ); // 100% high quality setting, no compression encoder.setJPEGEncodeParam ( param ); encoder.encode ( bi ); out.close(); saved = true; } catch ( Exception ex ) { System.out.println ("Error saving JPEG : " + ex.getMessage() ); } return ( saved ); } } // of MySnapshot public static void main (String[] args ) { try { JWebCam myWebCam = new JWebCam ( "TimeSlice Web Cam Capture" ); myWebCam.setVisible ( true ); if ( !myWebCam.initialise() ) { System.out.println ("Web Cam not detected / initialised"); } } catch ( Exception ex ) { ex.printStackTrace(); } } }

Back *|* JavaScript *|* Timer sample

The following code contains a timer, to write the JPEG image to disk periodically ... which should contain the SAME header message ;=))

import javax.swing.*; import javax.swing.border.*; import java.io.*; import javax.media.*; import javax.media.datasink.*; import javax.media.format.*; import javax.media.protocol.*; import javax.media.util.*; import javax.media.control.*; import java.util.*; //import java.util.Timer; //import java.util.TimerTask; import java.awt.*; //import java.awt.Toolkit; import java.awt.image.*; import java.awt.event.*; import com.sun.image.codec.jpeg.*; // import com.sun.media.vfw.VFWCapture; // JMF 2.1.1c version import com.sun.media.protocol.vfw.VFWCapture; // JMF 2.1.1e version public class JWebCam4 extends JFrame implements WindowListener, ComponentListener { protected final static int MIN_WIDTH = 320; protected final static int MIN_HEIGHT = 240; protected static int shotCounter = 1; protected static int fileCounter = 1; protected JLabel statusBar = null; protected JPanel visualContainer = null; protected Component visualComponent = null; protected JToolBar toolbar = null; protected MyToolBarAction formatButton = null; protected MyToolBarAction captureButton = null; protected Player player = null; protected CaptureDeviceInfo webCamDeviceInfo = null; protected MediaLocator ml = null; protected Dimension imageSize = null; protected FormatControl formatControl = null; protected VideoFormat currentFormat = null; protected Format[] videoFormats = null; protected MyVideoFormat[] myFormatList = null; protected boolean initialised = false; Toolkit toolkit; java.util.Timer timer = null; int seconds = 5; int EvtCnt = 0; String outFile = "images/tempa"; int maxfileNum = 9; int writeFile = 0; /* -------------------------------------------------------------- * Constructor * -------------------------------------------------------------- */ public JWebCam4 ( String frameTitle ) { super ( frameTitle ); try { UIManager.setLookAndFeel("javax.swing.plaf.metal.MetalLookAndFeel"); } catch ( Exception cnfe ) { System.out.println ("Note : Cannot load look and feel settings"); } setSize ( 320, 260 ); // default size... addWindowListener ( this ); addComponentListener ( this ); getContentPane().setLayout ( new BorderLayout() ); visualContainer = new JPanel(); visualContainer.setLayout ( new BorderLayout() ); getContentPane().add ( visualContainer, BorderLayout.CENTER ); statusBar = new JLabel (""); statusBar.setBorder ( new EtchedBorder() ); getContentPane().add ( statusBar, BorderLayout.SOUTH ); toolkit = Toolkit.getDefaultToolkit(); timer = new java.util.Timer(); timer.schedule(new RemindTask(), seconds*1000, seconds*1000); } class RemindTask extends TimerTask { // int EvtCnt = 0; public void run() { EvtCnt++; if (writeFile > 0) { toolkit.beep(); // System.out.println("Time's up! " + EvtCnt); if (EvtCnt > 3) { //timer.cancel(); //Terminate the timer thread, or //System.exit(0); // Stops the AWT thread // (and everything else) Image photo = grabFrameImage ( ); if ( photo != null ) { int i = fileCounter++; String str = outFile; // commence filename, like "temp"; if (i < 10) { str += "000" + i; } else if (i < 100) { str += "00" + i; } else if (i < 1000) { str += "0" + i; } else { str += "" + i; } if (fileCounter > maxfileNum) { fileCounter = 1; } str += ".jpg"; System.out.println ("got Image photo ...file = " + str); // MySnapshot snapshot = new MySnapshot ( photo, new Dimension ( imageSize ) ); writeJPEG( str, photo ); } else { System.out.println ("Error : Could not grab frame"); } } else { System.out.println("Time's up! " + EvtCnt); } } } } /* -------------------------------------------------------------- * Initialise * * @returns true if web cam is detected * -------------------------------------------------------------- */ public boolean initialise ( ) throws Exception { return ( initialise ( autoDetect() ) ); } /* ------------------------------------------------------------------- * Initialise * * @params _deviceInfo, specific web cam device if not autodetected * @returns true if web cam is detected * ------------------------------------------------------------------- */ public boolean initialise ( CaptureDeviceInfo _deviceInfo ) throws Exception { System.out.println ("Initialising..."); statusBar.setText ( "Initialising..."); webCamDeviceInfo = _deviceInfo; if ( webCamDeviceInfo != null ) { statusBar.setText ( "Connecting to : " + webCamDeviceInfo.getName() ); System.out.println ( "Connecting to : " + webCamDeviceInfo.getName() ); try { setUpToolBar(); getContentPane().add ( toolbar, BorderLayout.NORTH ); ml = webCamDeviceInfo.getLocator(); if ( ml != null ) { player = Manager.createRealizedPlayer ( ml ); if ( player != null ) { player.start(); formatControl = (FormatControl)player.getControl ( "javax.media.control.FormatControl" ); videoFormats = webCamDeviceInfo.getFormats(); visualComponent = player.getVisualComponent(); if ( visualComponent != null ) { visualContainer.add ( visualComponent, BorderLayout.CENTER ); myFormatList = new MyVideoFormat[videoFormats.length]; for ( int i=0; i < videoFormats.length; i++ ) { myFormatList[i] = new MyVideoFormat ( (VideoFormat)videoFormats[i] ); } Format currFormat = formatControl.getFormat(); if ( currFormat instanceof VideoFormat ) { currentFormat = (VideoFormat)currFormat; imageSize = currentFormat.getSize(); visualContainer.setPreferredSize ( imageSize ); setSize ( imageSize.width, imageSize.height + statusBar.getHeight() + toolbar.getHeight() ); statusBar.setText ( "Connected: " + webCamDeviceInfo.getName() ); System.out.println ( "Connected : " + webCamDeviceInfo.getName() ); System.out.println ( "Size : " + imageSize.width + "x" + imageSize.height); } else { System.err.println ("Error : Cannot get current video format"); } invalidate(); pack(); System.out.println ("Done, returning TRUE ..."); return ( true ); } else { System.err.println ("Error : Could not get visual component"); return ( false ); } } else { System.err.println ("Error : Cannot create player"); statusBar.setText ( "Cannot create player" ); return ( false ); } } else { System.err.println ("Error : No MediaLocator for " + webCamDeviceInfo.getName() ); statusBar.setText ( "No Media Locator for : " + webCamDeviceInfo.getName() ); return ( false ); } } catch ( IOException ioEx ) { statusBar.setText ( "NO connection to : " + webCamDeviceInfo.getName() ); return ( false ); } catch ( NoPlayerException npex ) { statusBar.setText ("Cannot create player"); return ( false ); } catch ( CannotRealizeException nre ) { statusBar.setText ( "Cannot realize player"); return ( false ); } } else { statusBar.setText ( "No web cam information"); return ( false ); } } /* ------------------------------------------------------------------- * Dynamically create menu items * * @returns the device info object if found, null otherwise * ------------------------------------------------------------------- */ public void setFormat ( VideoFormat selectedFormat ) { if ( formatControl != null ) { player.stop(); imageSize = selectedFormat.getSize(); formatControl.setFormat ( selectedFormat ); player.start(); statusBar.setText ( "Format : " + selectedFormat ); currentFormat = selectedFormat; visualContainer.setPreferredSize ( currentFormat.getSize() ); setSize ( imageSize.width, imageSize.height + statusBar.getHeight() + toolbar.getHeight() ); } else { System.out.println ("Visual component not an instance of FormatControl"); statusBar.setText ( "Visual component cannot change format" ); } } public VideoFormat getFormat ( ) { return ( currentFormat ); } protected void setUpToolBar ( ) { toolbar = new JToolBar(); // Note : If you supply the 16 x 16 bitmaps then you can replace // the commented line in the MyToolBarAction constructor formatButton = new MyToolBarAction ( "Resolution", "BtnFormat.jpg" ); captureButton = new MyToolBarAction ( "Capture", "BtnCapture.jpg" ); toolbar.add ( formatButton ); toolbar.add ( captureButton ); getContentPane().add ( toolbar, BorderLayout.NORTH ); } protected void toolbarHandler ( MyToolBarAction actionBtn ) { if ( actionBtn == formatButton ) { Object selected = JOptionPane.showInputDialog (this, "Select Video format", "Capture format selection", JOptionPane.INFORMATION_MESSAGE, null, // Icon icon, myFormatList, // videoFormats, currentFormat ); if ( selected != null ) { setFormat ( ((MyVideoFormat)selected).format ); } } else if ( actionBtn == captureButton ) { Image photo = grabFrameImage ( ); if ( photo != null ) { int i = fileCounter++; String str = "tempb"; if (i < 10) { str = str + "000" + i; } else if (i < 100) { str = str + "00" + i; } if (fileCounter > 9) { fileCounter = 1; } str += ".jpg"; System.out.println ("got Image photo ...file = " + str); MySnapshot snapshot = new MySnapshot ( photo, new Dimension ( imageSize ) ); } else { System.err.println ("Error : Could not grab frame"); } } } /* ------------------------------------------------------------------- * autoDetects the first web camera in the system * searches for video for windows ( vfw ) capture devices * * @returns the device info object if found, null otherwise * ------------------------------------------------------------------- */ public CaptureDeviceInfo autoDetect ( ) { Vector list = CaptureDeviceManager.getDeviceList ( null ); CaptureDeviceInfo devInfo = null; if ( list != null ) { String name; int i; // for debug only //for ( i=0; i < list.size(); i++ ) { // devInfo = (CaptureDeviceInfo)list.elementAt ( i ); // name = devInfo.getName(); // System.out.println ("Device:"+(i + 1)+":"+name); //} for ( i=0; i < list.size(); i++ ) { devInfo = (CaptureDeviceInfo)list.elementAt ( i ); name = devInfo.getName(); if ( name.startsWith ("vfw:") ) { break; } } if ( devInfo != null && devInfo.getName().startsWith("vfw:") ) { return ( devInfo ); } else { for ( i = 0; i < 10; i++ ) { try { name = VFWCapture.capGetDriverDescriptionName ( i ); if (name != null && name.length() > 1) { devInfo = com.sun.media.protocol.vfw.VFWSourceStream.autoDetect ( i ); if ( devInfo != null ) { return ( devInfo ); } } } catch ( Exception ioEx ) { // ignore errors detecting device statusBar.setText ( "AutoDetect failed : " + ioEx.getMessage() ); } } return ( null ); } } else { return ( null ); } } /* ------------------------------------------------------------------- * deviceInfo * * @note outputs text information * ------------------------------------------------------------------- */ public void deviceInfo ( ) { if ( webCamDeviceInfo != null ) { Format[] formats = webCamDeviceInfo.getFormats(); if ( ( formats != null ) && ( formats.length > 0 ) ) { System.out.println ("deviceInfo: Video Format count " + formats.length ); } else { System.out.println ("deviceInfo: NO Video Format count " + formats.length ); } for ( int i=0; i < formats.length; i++ ) { Format aFormat = formats[i]; if ( aFormat instanceof VideoFormat ) { Dimension dim = ((VideoFormat)aFormat).getSize(); System.out.println ("Video Format " + i + " : " + formats[i].getEncoding() + ", " + dim.width + " x " + dim.height ); } } } else { System.out.println ("Error : No web cam detected"); } } /* ------------------------------------------------------------------- * grabs a frame's buffer from the web cam / device * * @returns A frames buffer * ------------------------------------------------------------------- */ public Buffer grabFrameBuffer ( ) { if ( player != null ) { FrameGrabbingControl fgc = (FrameGrabbingControl)player.getControl ( "javax.media.control.FrameGrabbingControl" ); if ( fgc != null ) { return ( fgc.grabFrame() ); } else { System.err.println ("Error : FrameGrabbingControl is null"); return ( null ); } } else { System.err.println ("Error : Player is null"); return ( null ); } } /* ------------------------------------------------------------------- * grabs a frame's buffer, as an image, from the web cam / device * * @returns A frames buffer as an image * ------------------------------------------------------------------- */ public Image grabFrameImage ( ) { Buffer buffer = grabFrameBuffer(); if ( buffer != null ) { // Convert it to an image BufferToImage btoi = new BufferToImage ( (VideoFormat)buffer.getFormat() ); if ( btoi != null ) { Image image = btoi.createImage ( buffer ); if ( image != null ) { return ( image ); } else { System.err.println ("Error : BufferToImage cannot convert buffer"); return ( null ); } } else { System.err.println ("Error : cannot create BufferToImage instance"); return ( null ); } } else { System.out.println ("Error : Buffer grabbed is null"); return ( null ); } } /* ------------------------------------------------------------------- * Closes and cleans up the player * * ------------------------------------------------------------------- */ public void playerClose ( ) { if ( player != null ) { System.out.println ("playerClose(): closing ..."); player.close(); player.deallocate(); player = null; } if (timer != null) { timer.cancel(); //Terminate the timer thread, or } } public void windowClosing ( WindowEvent e ) { System.out.println ("windowClosing(e): close player ..."); playerClose(); System.exit ( 1 ); } public void componentResized ( ComponentEvent e ) { Dimension dim = getSize(); boolean mustResize = false; if ( dim.width < MIN_WIDTH ) { dim.width = MIN_WIDTH; mustResize = true; } if ( dim.height < MIN_HEIGHT ) { dim.height = MIN_HEIGHT; mustResize = true; } if ( mustResize ) setSize ( dim ); } public void windowActivated ( WindowEvent e ) { } public void windowClosed ( WindowEvent e ) { } public void windowDeactivated ( WindowEvent e ) { } public void windowDeiconified ( WindowEvent e ) { } public void windowIconified ( WindowEvent e ) { } public void windowOpened ( WindowEvent e ) { } public void componentHidden(ComponentEvent e) { } public void componentMoved(ComponentEvent e) { } public void componentShown(ComponentEvent e) { } protected void finalize ( ) throws Throwable { playerClose(); super.finalize(); } class MyToolBarAction extends AbstractAction { public MyToolBarAction ( String name, String imagefile ) { // Note : Use this version, if you supply your own toolbar icons // super ( name, new ImageIcon ( imagefile ) ); super ( name ); } public void actionPerformed ( ActionEvent event ) { toolbarHandler ( this ); } }; class MyVideoFormat { public VideoFormat format; public MyVideoFormat ( VideoFormat _format ) { format = _format; } public String toString ( ) { Dimension dim = format.getSize(); return ( format.getEncoding() + " [ " + dim.width + " x " + dim.height + " ]" ); } }; // window, to hold the SNAPSHOT, sort of PREVIEW // When the window is CLOSED, a Save File dialog is openned // and the JPEG is written to the user's accepted, file name class MySnapshot extends JFrame { protected Image photo = null; protected int shotNumber; public MySnapshot ( Image grabbedFrame, Dimension imageSize ) { super ( ); shotNumber = shotCounter++; setTitle ( "Photo" + shotNumber ); photo = grabbedFrame; setDefaultCloseOperation ( WindowConstants.DISPOSE_ON_CLOSE ); int imageHeight = photo.getWidth ( this ); int imageWidth = photo.getHeight ( this ); setSize ( imageSize.width, imageSize.height ); final FileDialog saveDialog = new FileDialog ( this, "Save JPEG", FileDialog.SAVE ); final JFrame thisCopy = this; saveDialog.setFile ( "Photos" + shotNumber ); addWindowListener ( new WindowAdapter() { public void windowClosing ( WindowEvent e ) { saveDialog.show(); String filename = saveDialog.getFile(); if ( filename != null ) { // if ( saveJPEG ( filename ) ) if ( writeJPEG ( filename, photo ) ) { JOptionPane.showMessageDialog ( thisCopy, "Saved " + filename ); setVisible ( false ); dispose(); } else { JOptionPane.showMessageDialog ( thisCopy, "Error saving " + filename ); } } else { setVisible ( false ); dispose(); } } } ); setVisible ( true ); } public void paint ( Graphics g ) { g.drawImage ( photo, 0, 0, getWidth(), getHeight(), this ); } /* ------------------------------------------------------------------- * Saves an image as a JPEG * * @params the image to save * @params the filename to save the image as * java FileOutputStream - * * ------------------------------------------------------------------- */ public boolean saveJPEG ( String filename ) { boolean saved = false; BufferedImage bi = new BufferedImage ( photo.getWidth(null), photo.getHeight(null), BufferedImage.TYPE_INT_RGB ); Graphics2D g2 = bi.createGraphics(); g2.drawImage ( photo, null, null ); FileOutputStream out = null; try { out = new FileOutputStream ( filename ); JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder ( out ); JPEGEncodeParam param = encoder.getDefaultJPEGEncodeParam ( bi ); param.setQuality ( 1.0f, false ); // 100% high quality setting, no compression encoder.setJPEGEncodeParam ( param ); encoder.encode ( bi ); out.close(); saved = true; System.out.println ("Done saving JPEG : " + filename ); } catch ( Exception ex ) { System.out.println ("Error saving JPEG : " + ex.getMessage() ); } return ( saved ); } } // of MySnapshot public boolean writeJPEG ( String filename, Image photo ) { boolean saved = false; BufferedImage bi = new BufferedImage ( photo.getWidth(null), photo.getHeight(null), BufferedImage.TYPE_INT_RGB ); Graphics2D g2 = bi.createGraphics(); g2.drawImage ( photo, null, null ); FileOutputStream out = null; try { out = new FileOutputStream ( filename ); JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder ( out ); JPEGEncodeParam param = encoder.getDefaultJPEGEncodeParam ( bi ); param.setQuality ( 1.0f, false ); // 100% high quality setting, no compression encoder.setJPEGEncodeParam ( param ); encoder.encode ( bi ); out.close(); saved = true; System.out.println ("Done saving JPEG : " + filename ); } catch ( Exception ex ) { System.out.println ("Error saving JPEG : " + ex.getMessage() ); } return ( saved ); } public static void main (String[] args ) { try { JWebCam4 myWebCam = new JWebCam4 ( "Web Cam Capture 4" ); myWebCam.setVisible ( true ); if ( !myWebCam.initialise() ) { System.out.println ("Web Cam not detected / initialised"); } else { System.out.println ("Web Cam detected, and initialised ..."); } } catch ( Exception ex ) { ex.printStackTrace(); } } } // eof

The image file(s) created by the above java are transferred up to the server using some Java FTP code ...
